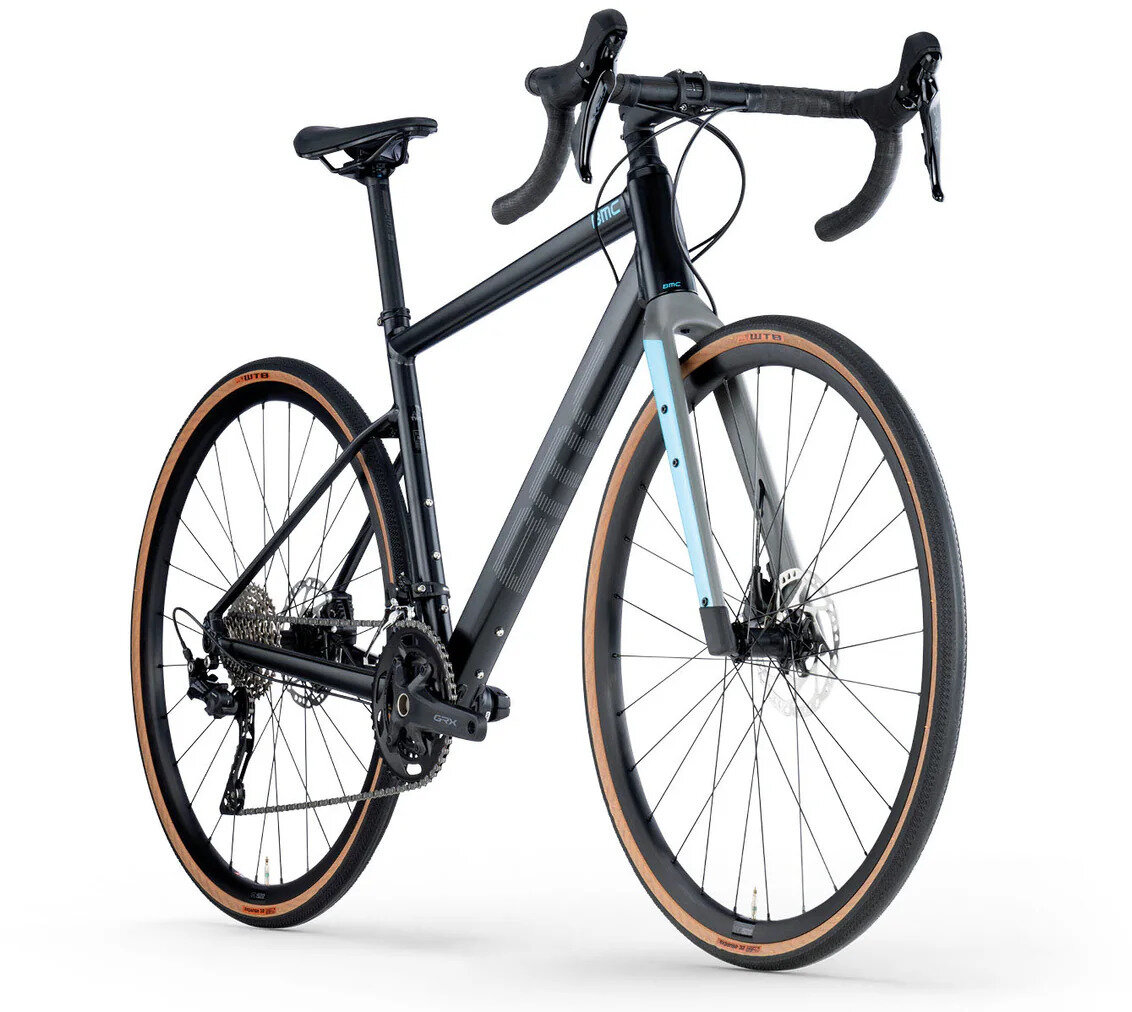

BMC Roadmachine AL X TWO

BMC Roadmachine AL X TWO
  • Color: Black/Turquoise
  • Color: Black/Turquoise
  • Color: Black/Turquoise
$2,599.99
$3,499.99
Color: Black/Turquoise
Size: Select size
Please select options Unavailable

Details

The Roadmachine AL X TWO features a robust frameset that handles all the rough stuff. The Premium Aluminium frame and carbon fork were designed using TCC Gravel technology, with Gravel+ geometry. They feature fender, rack and cargo mounts, hub dynamo cable routing, a round seatpost and a mixture of Shimano’s GRX and Deore components and 32mm WTB tires on XRD-522 wheels.

MeasurementXSSMLXL
Rider Height < 165 162 - 172 170 - 182 180 - 192 >190
Reach 390 400 410 420 430
Stack 525 550 580 610 640
Bar Drop 125 125 125 125 125
Bar Reach 70 70 70 70 70
Bar Width 400 420 420 420 440
BB Drop 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175
Fork Length 410 410 410 410 410
Fork Rake 45 45 45 45 45
Front Center 608 626 647 668 689
Head Tube 92 118 150 182 214
Head Tube Angle 70 70 70 70 70
Rear Center 430 430 430 430 430
Seat Angle 74 74 74 74 74
Seat Tube 430 445 475 505 540
Seatpost Length 350 350 350 350 350
Seatpost Offset 15 15 15 15 15
Standover Height 720 738 768 797 830
Stem Angle ±8 ±8 ±8 ±8 ±8
Stem Length 90 90 100 110 110
Top Tube 540 558 576 595 614
Trail 78 78 78 78 78
Wheelbase 1028 1047 1068 1089 1110

Specs

Frame Roadmachine X Premium Aluminium with Tuned Compliance Concept Gravel | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Roadmachine X Carbon with Tuned Compliance Concept Gravel | Internal BRake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | Side Mounts
Rims XRD-522 | Tubeless Ready | 25 mm
Hubs XRD-522
Tires WTB Expanse | 32mm
Bottom Bracket PF86 Bottom Bracket
Crankset SHIMANO GRX 600
Chainrings SHIMANOrings
Shifters SHIMANO GRX 400
Rear Derailleur SHIMANO GRX 400
Cassette/Freewheel SHIMANO Deore 11-36T
Chain SHIMANO
Rotors SHIMANO SM-RT64
Brake Levers SHIMANO GRX (BR-RX400)
Handlebars BMC RAB 03 | Ergo Top Shape | Compact Bend
Stem BMC RSM 01
Seatpost BMC RSP 03
Saddle Selle Royal

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Black/Turquoise / Medium 30004980 ROA32692548E
Black/Turquoise / Large 30004981 ROA32366949E
Black/Turquoise / X-Large 30004982 ROA33552758E
